Description
The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. The scale size and detail of the #58 coupler has long been popular with model railroaders, so we knew we had to offer a Whisker® version. Behold the #158 - a scale sized coupler with smaller head and knuckle for a more prototypical look. Often referred to as the "Whisker® version of the #58", the #158 features an even longer-lasting and more reliable design. No more fumbling with centering springs. No more multi-piece assemblies. The #158 Whisker® coupler is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you've ever had. Always made right here in the USA with legendary Made In America quality.
The #178 is a special product. It features #158 Scale couplers with special scale-sized gearboxes. This unique combination results in one of the most prototypical looking coupler setups in model railroading.
Package Includes:
- (2) Pair #158 "Scale" Whisker® Metal Couplers - Medium Centerset Shank
- (2) Pair #178 "Scale" Snap-Together Gearboxes & Lids
- (2) Spare #625 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

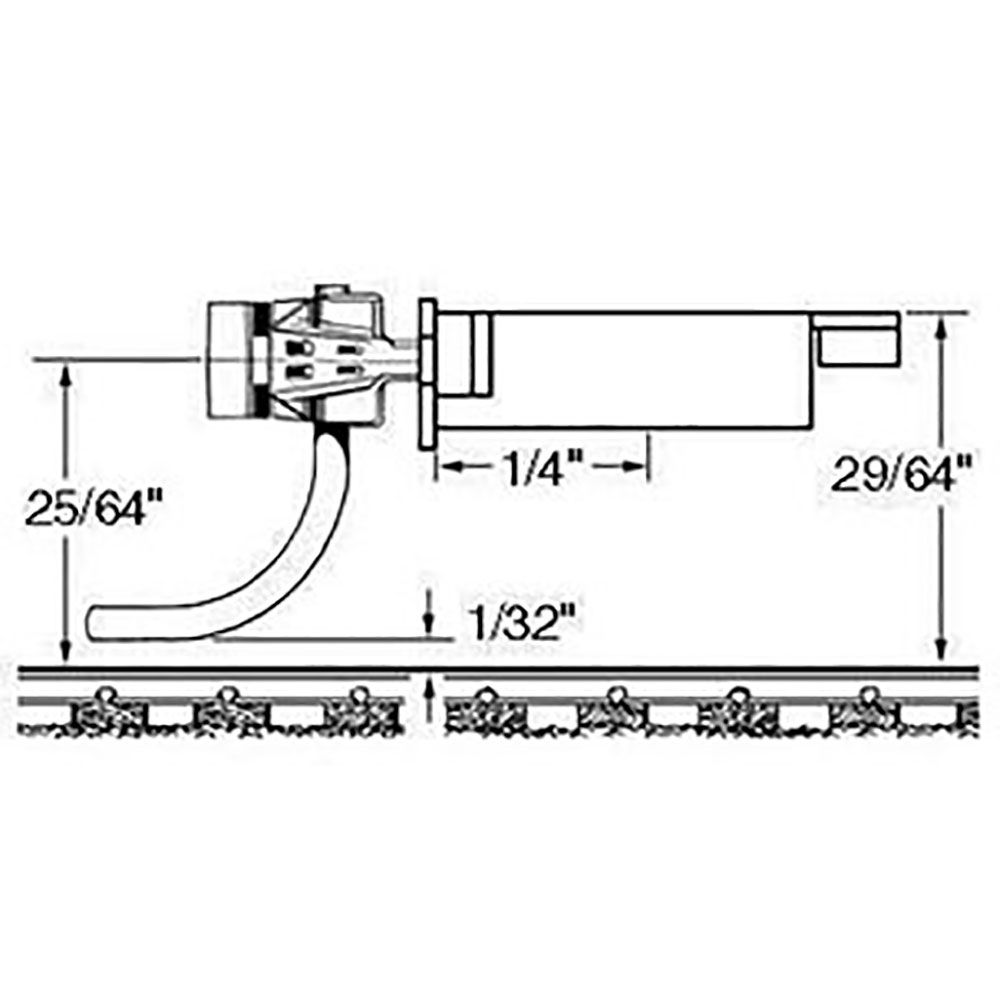

| #158 Coupler Specifications | |
|---|---|
| Shank Length | Medium - 9/32" (center of mounting hole to back of coupler head) |
| Shank Offset | Centerset |
| Mounting Height | 29/64" |
| Centerline | 25/64" |
| Trip Pin Height | 1/32" |
| Head Style | Scale |
| Centering Spring | Whisker® |
| Knuckle Spring | #625 |
| Shank Material | Metal |
| Knuckle Material | Metal |
| Color | Black |
| Compatible Gearboxes | #213, #232, #234, #242, Most manufacturer molded-on gearboxes* |

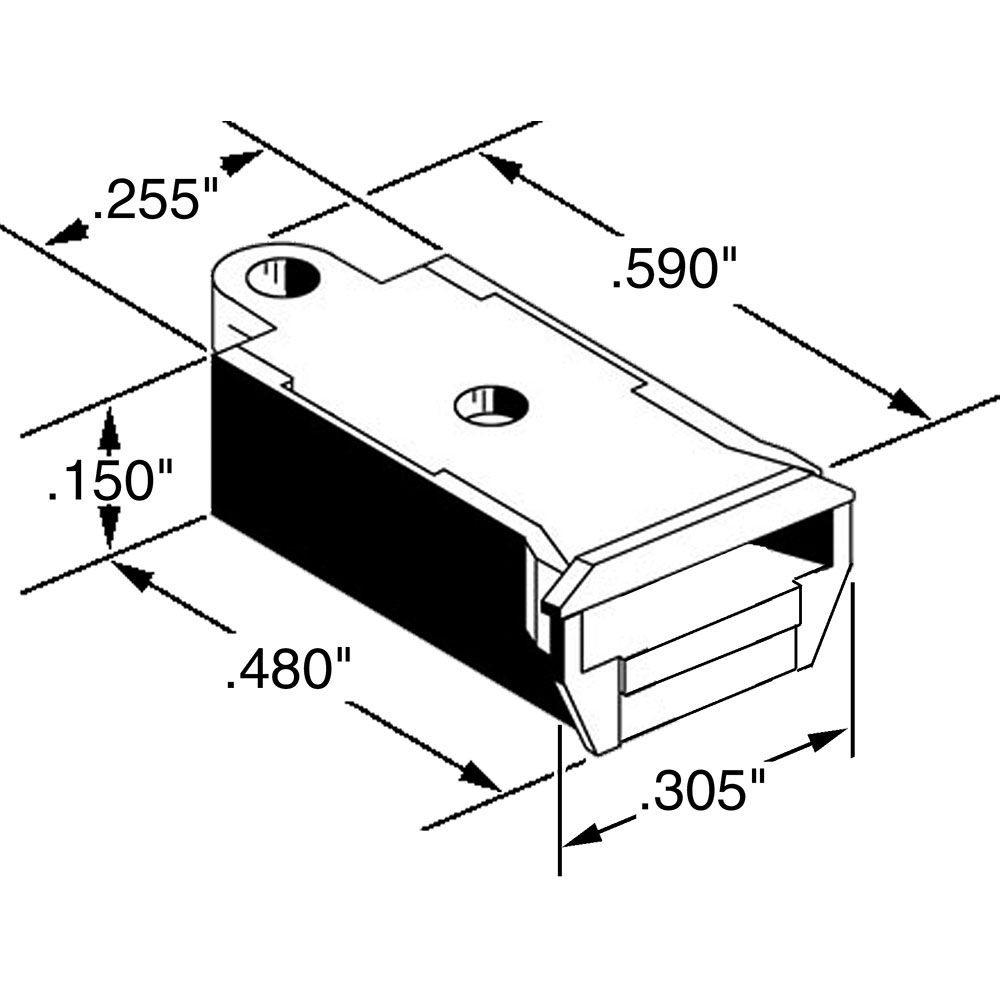

| #178 Gearboxes & Lids Specifications | |
|---|---|
| Material | Insulated Plastic |
| Dimensions | 19/32" L x 17/64" W x 5/32" H |
| Center Hole | 2-56 Insulated Screws |
| Rear Hole | 0-48 or 0-80 Screws |
| Color | Black |
