Description
The next evolution of model train couplers starts and ends with the Kadee® Whisker® series of couplers. When we set out to improve upon the venerable No.5® we knew it had to be just as game-changing as the original. With that in mind, we designed a the Whisker® couplers with an even longer-lasting and more reliable design. We took everything you loved about the No.5® and improved upon it. No more fumbling with centering springs. No more multi-piece assemblies. The Whisker® series of couplers is a true drop-in coupler. Use Kadee® Whisker® couplers in your next model and enjoy the most reliable and smooth coupling experience you've ever had. Always made right here in the USA with legendary Made In America quality.

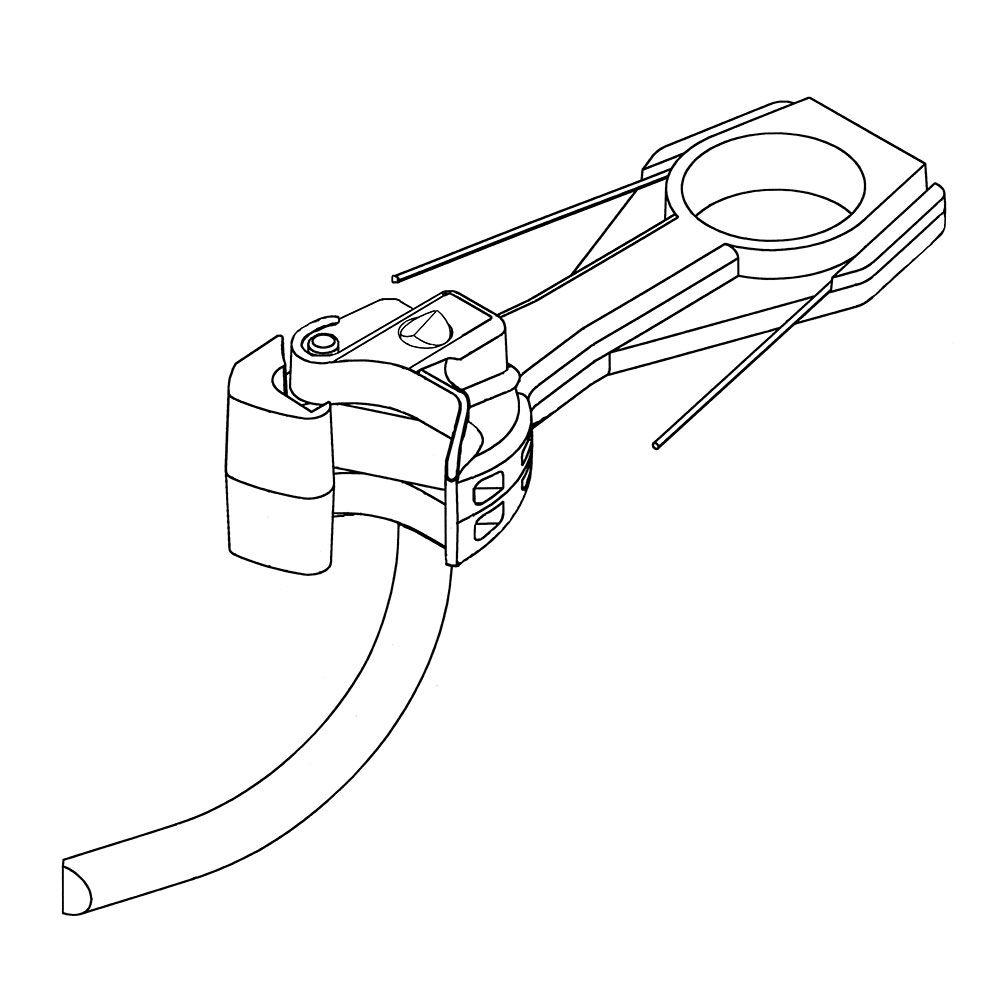

The #119 SE Shelf Coupler features shelfs that actually work, and can be easily modified to look like the type SBE passenger car coupler. Can be mounted in Kadee® #213, #232, #234, #242 Gearboxes or directly into most manufacturer's molded-on gearboxes.
Package Includes:
- (25) Pair #119 SE Shelf Whisker® Metal Couplers - Medium Centerset Shank
- (10) Spare #625 Knuckle Springs
- **Gearboxes not included**
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

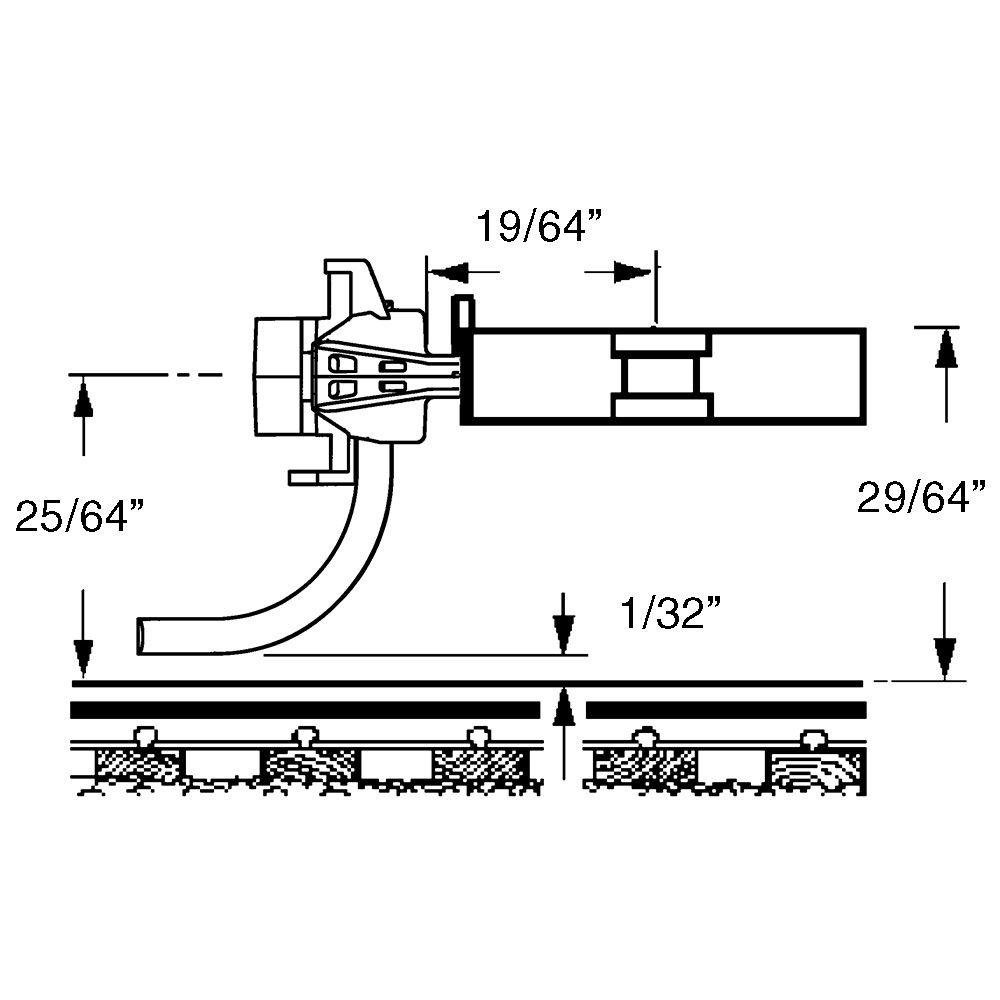

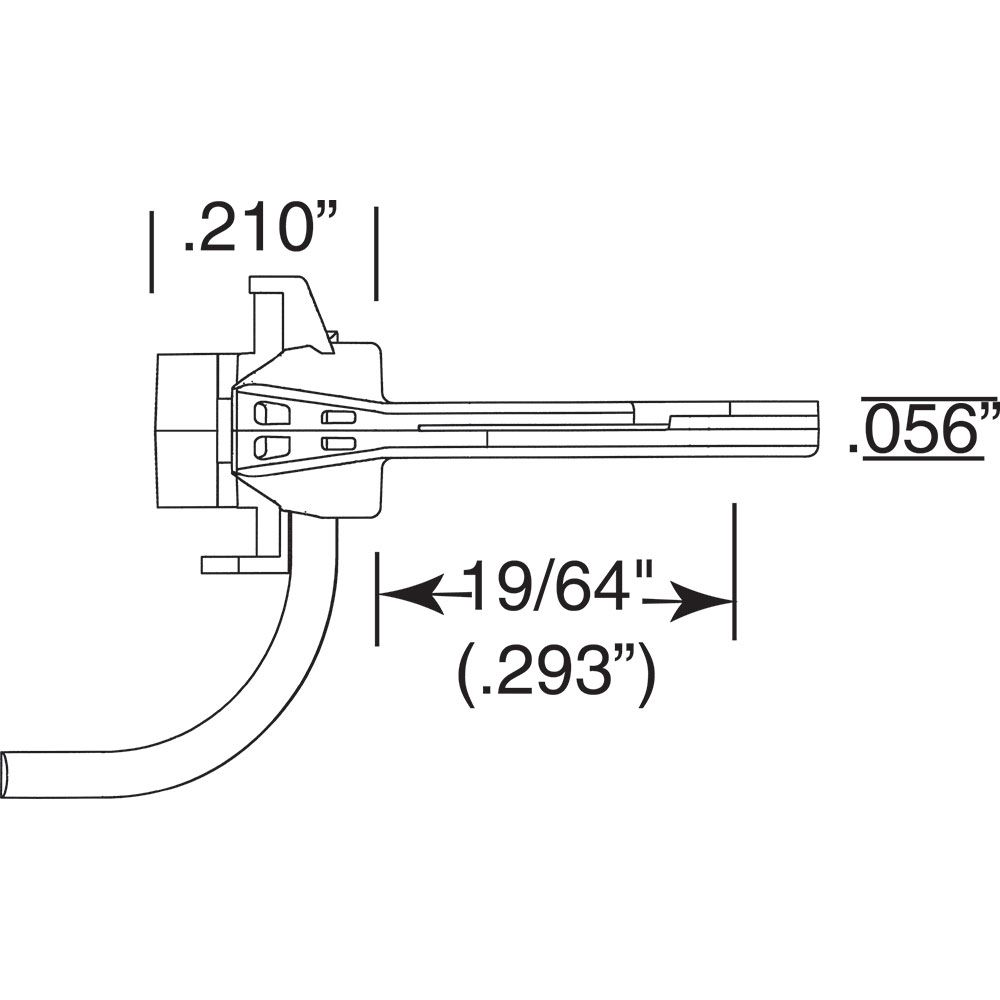

| #119 Coupler Specifications | |
|---|---|
| Shank Length | Medium - 9/32" (center of mounting hole to back of coupler head) |
| Shank Offset | Centerset |
| Mounting Height | 29/64" |
| Centerline | 25/64" |
| Trip Pin Height | 1/32" |
| Head Style | SE Shelf |
| Centering Spring | Whisker® |
| Knuckle Spring | #625 |
| Shank Material | Metal |
| Knuckle Material | Metal |
| Color | Black |
| Compatible Gearboxes | #213, #232, #234, #242, #252, #262, and Most manufacturer molded-on gearboxes* |
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #119 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
